BFM-II

The Perfect Solution For Multi-Circuit Metering

  • Modular design customized to any need
  • Tenant billing & monitoring
  • Multi-circuit energy reading
  • Built-in communication platforms
  • Time-of use (tou) metering
  • Data logging
Description
SATECís BFM-II is the second generation of Branch Feeder Monitorô, providing energy management for multi-point power solutions. Ideal for both new and retrofit projects, the BFM-II automatically provides metering, demand and energy readings, logging and multi-tariff (TOU) data.
The BFM-II monitors up to 18 three-phase circuits, 54 single-phase circuits, or any combination of single or three-phase circuits. This flexibility makes the BFM-II perfect for multi-tenant facilities such as residential projects, office buildings and shopping malls. Its modular design offers a selection of 18, 24, 30, 36, 42 or 54 channels to fit any requirement and to easily fit into existing panel boards or be flush mounted nearby, thus eliminating the need for expensive retrofit projects or for allocating extra space for the device.

The BFM-II supports power quality monitoring to identify existing and potential operation problems, such as overloading or malfunctioning due to voltage or current harmonics, or voltage sags and swell (contact SATEC for availability).
The BFM-II utilizes High Accuracy Current Sensors (HACS), which measure and report the current consumed by each of the branch circuits at the panel board. For billing purposes, single or multiple circuits can be defined for each customer. This flexibility allows for a simple reassignment of circuit groups without wiring changes, and enables easy changes when tenants move in and out. Main panel board or load center installation makes for a valuable saving of both time and money.
The BFMís user-defined and easily configured alarm system enables users to take predictive maintenance action in order to avoid unnecessary outages.

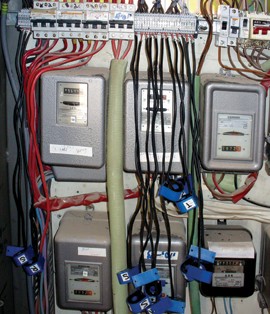

BFM-II VS. 3-Phase Meters

In comparison with 3-phase meters, the BFM-II offers a great saving of cost, time
and space, compared with typical installation:
  • A single BFM-II device replaces up to 18 three-phase meters
  • Saves 60% of the hardware cost
  • Saves 75% installation cost
  • Saves 75% of the installation time, including wiring
  • Saves 75% of panel space for 3-phase or 90% for single-phase
  • The BFM-II uses only 1 TCP/IP address for all submeters, compared with up to 54 addresses when using separate meters, thus making better use of IP Addresses.
  • Multi-channel submetering Ė up to 54 single-phase, 27 two-phase or 18 three-phase meters in a single device. Any combination of single-, two-, and three-phase consumers can be chosen up to a total of 54 current inputs.
  • Automatic totalization energy from different consumers
  • Modular design allows selection of 18, 24, 30, 36, 42 or 54 submeters
  • Supports high accuracy current transformers with Class 0.5S accuracy
  • 3-phase/2-phase/single-phase meters (true RMS, volts, amps, power, power factor, neutral current)
  • Ampere/Volt demand meter
  • Time-of-Use, 8 energy/demand registers x 8 tariffs, 4 seasons x 4 types of days, 8 tariff changes per day, easy programmable tariff schedule
  • Automatic 120-day daily profile for energy and maximum demand readings (total and tariff registers) for each submeter
  • Power quality monitoring including voltage and current harmonics (up to the 25th), voltage sags, voltage swells and interruptions (contact SATEC for availability)
  • Event recorder for logging internal diagnostic events and setpoint operations
  • Data recorders: programmable periodical data logs for each submeter
  • Embedded programmable controller (4 control setpoints, programmable thresholds and delays) for each submeter
  • Detachable optional 3.5Ē 320◊240 pixels touch screen display with backlight
  • Internal clock, keeping the clock running for years without external power
  • Standard RS-485, Ethernet and USB ports
  • Optional cellular communication port plug-in module
  • Optional 9/18 digital inputs or 4 analog inputs module
  • Modbus RTU, Modbus TCP, DNP3.0 and DNP/TCP communication protocols
  • Easy field upgrading device firmware
