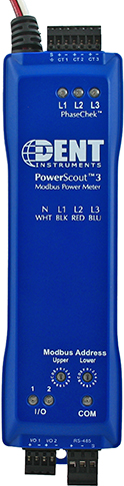

PowerScout Networked Power Meters

DENT's PowerScout™ Series networked powermeters are submetering devices designed to provide timely and accurate consumption data necessary to gain the upper hand on electrical costs in today's escalating energy market. These meters can capture kWh/kW energy and demand data as well as virtually all relevant energy parameters for diagnostics and monitoring on three-phase or single-phase circuit installations. The PowerScout's™ flexibility, size, and ease-of-use make them ideal tools for gathering detailed consumption information in commercial, industrial, government and retail environments. Installing the PowerScout™ is simple thanks to color-coded voltage leads and clearly labeled CTs. DENT's patented PhaseChek™ circuitry includes a three LED indicator display that confirms proper CT-to-phase installation. The PowerScout™ automatically adjusts for CT orientation, greatly reducing set-up time and all but eliminating installation errors.

     TThe PowerScout™ uses direct connections to each phase of the
     voltage and various pre-wired CT options such as split-core current
     transformers or flexible Rogowski coils (for large loads or large cables
     and busbars) to monitor current on each phase.

Communications interface to the PowerScout™ is through an RS-485 serial connection using the industry-standard Modbus protocol. Up to 254 PowerScout™ meters may be connected to a single RTU or datalogger for monitoring and recording power usage at multiple locations within a single site.
The PowerScout™ 18 is available with or without an enclosure, as pictured below.

Key Features:

  • Over 50 measured parameters for energy measurement, monitoring and diagnostics
  • 3 or 18 channels for multi-circuit or branch-circuit monitoring
  • Single or 3-phase energy and power meter for submetering applications
  • Mix-and-match a full range of Split-Core or RoCoil™ Rogowski-style current transformers
  • PhaseChek™ LED indicators ensure correct CT orientation during installation (patent pending)
  • Line-Powered; 60-600V Phase-Phase Power Supply (Use on 120/240V, 208/120V, 480/277V, or 580/335V, 380/220 volt services; 50 or 60 Hz
  • Equipped with industry-standard Modbus Communications
  • Data updates occur every 0.5 seconds
  • ETL and CE Mark
